Challenger 360 Drill Rig

Especificaciones

Modelo360

Detallep/b DETROIT Series 60 14.0L D-Deck VI Diesel Eng

DetalleALLISON 5860 Transmission

DetalleD/D Drawworks w/ 7/8" Line

DetallePosi-Stop, WPT Disc Brake, Hyd Catheads , Transfer Case, 200,000# SHL Rng 2 Sgl Mast, Hyd Raised w/ McKISSICK 3-Sheave Drilling Blocks, H-T SW-35 100-Ton Swivel, 4-1/4" Sq Kelly, Drive Bushing, H-T 18" Rotary Table w/ Split MB, McKISSICK 73 100-Ton 3-Sheave Tripping Blocks, 72" Elevator Links, Rotary Hose, Type B Tongs, RAUSH 12A Pipe Spinner

DetalleMtd on CHALLENGER 56'OAL 3-Axle Trailer w/ Tail Rotary Drive Box, (2) PULLMASTER PL-8 Hyd Utility Hoists, Air & Hyd Controls, Wt Indicators, SPEEDAIRE Air Compressor p/b 7.5HP Elec Motor, (8) Hyd Jacks, LED Lights, Side-Mtd Walkways, 11R-24.5 Tires

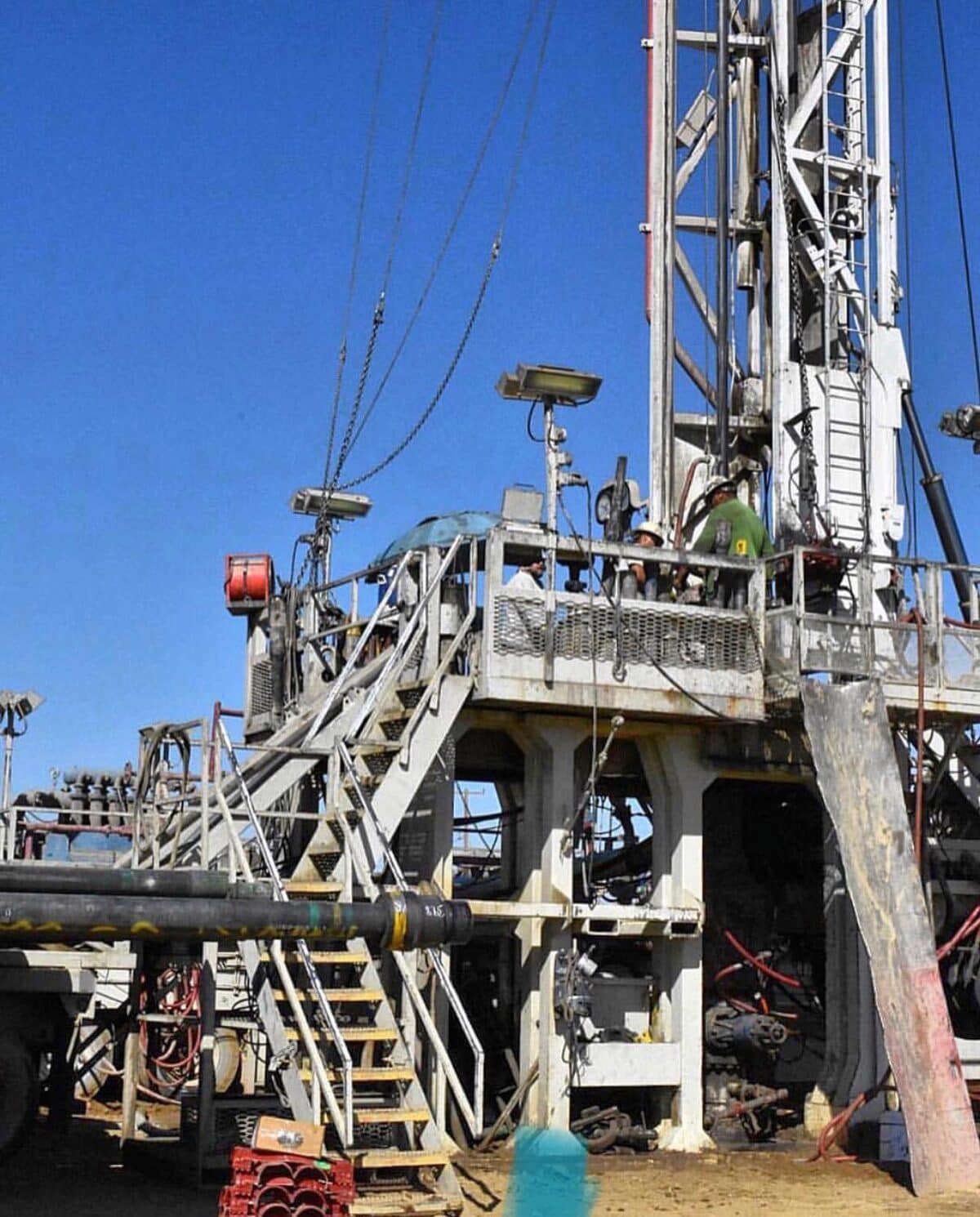

DetalleHeavy-duty working floor 10'H x 15'W x 8'L (trailer NOT included, but can be purchased at additional cost HERE ) ** Photo w/ derrick up shows rig w/ extra heavy-duty working floor attached * mainly designed for those that choose to stand back doubles in derrick. It does NOT necessarily need to be attached w/ main floor, if you do not stand back doubles in the derrick.

Incluye factura, certificado de origen y packing list para importación. Ubicación: California, US.
