Challenger 320 Drill Rig — Rigs de Perforación

Especificaciones

DetalleD/D Drawworks w/ 7/8" Line, WPT Disc Brake, Hyd Catheads p/b DETROIT Series 60 14.0L D-Deck VI Diesel Eng, ALLISON HT-750 Trans, Transfer Case, 150,000# SHL Rng 3 Sgl Mast, Hyd Raised w/ McKISSICK 3-Sheave Drilling Blocks, H-T SW-35 100-Ton Swivel, 4-1/4" Sq Kelly, Drive Bushing, H-T 18" Rotary Table w/ Split MB, SOWA 100-Ton 3-Sheave Tripping Blocks, 72" Elevator Links, Rotary Hose, Type B Tongs, DP Elevators, RAUSH 12A Pipe Spinner

DetalleMtd on CHALLENGER 52'OAL 3-Axle Trailer w/ Short Rotary Drive Box, (2) PULLMASTER PL-8 Hyd Utility Hoists, Air & Hyd Controls, Wt Indicators, SPEEDAIRE Air Compressor p/b 7.5HP Elec Motor, (4) Hyd Jacks, LED Lights, Side-Mtd Walkways, 11R-24.5 Tires

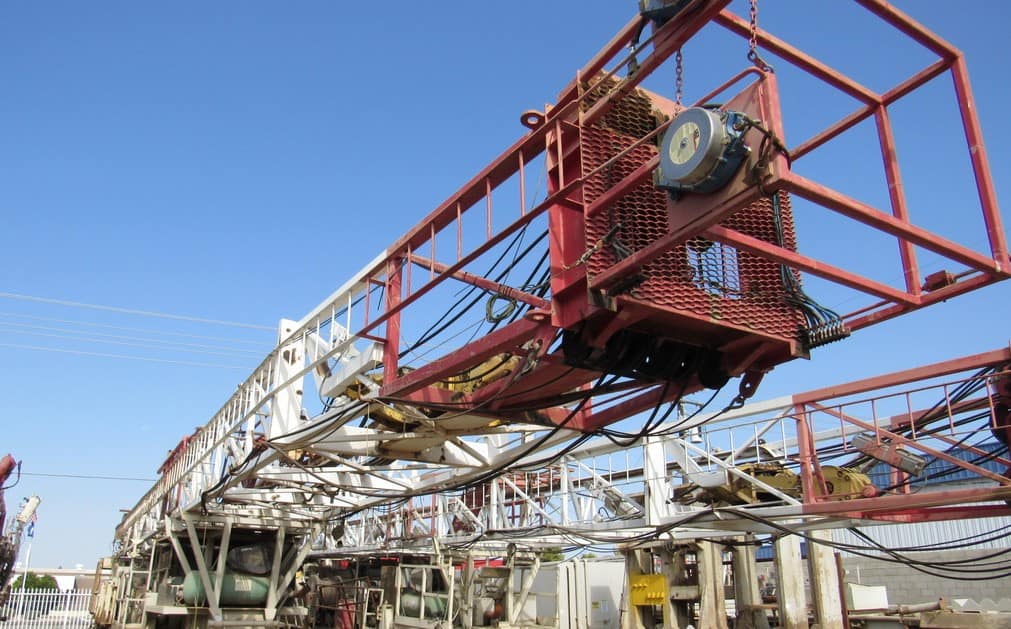

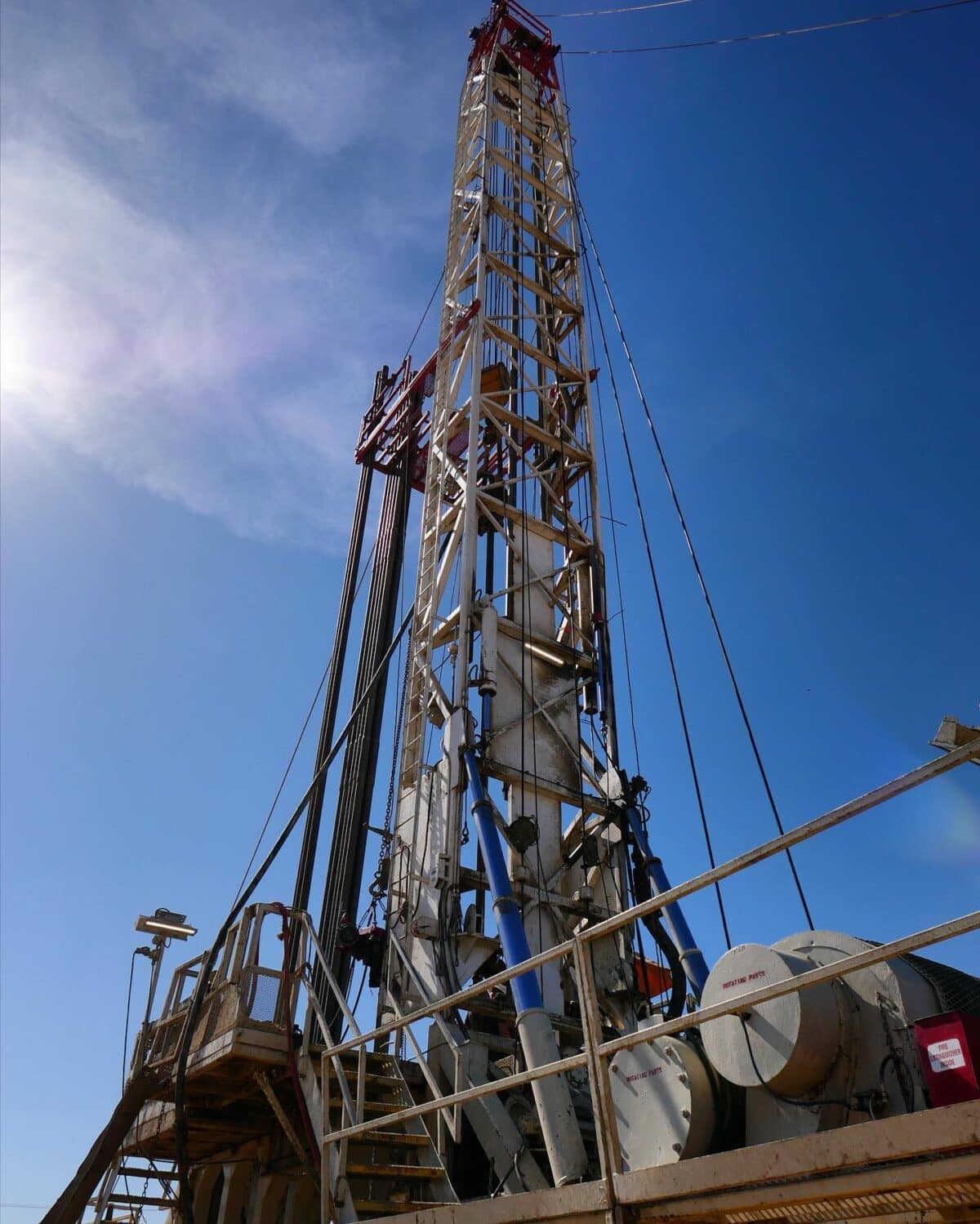

DetalleHeavy duty working floor 10'H x 15'W x 8'L (trailer NOT included , but can be purchased at additional cost HERE ) ** Photo w/ derrick up shows rig w/ extra heavy-duty working floor attached * mainly designed for those that choose to stand back doubles in derrick. It does NOT necessarily need to be attached w/ main floor, if you do not stand back doubles in the derrick

Detalle** RIG is currently getting a new paint job & sandblaster & Major repairs have been done.

Incluye factura, certificado de origen y packing list para importación. Ubicación: Arizona, EE.UU.

Rigs de Perforación

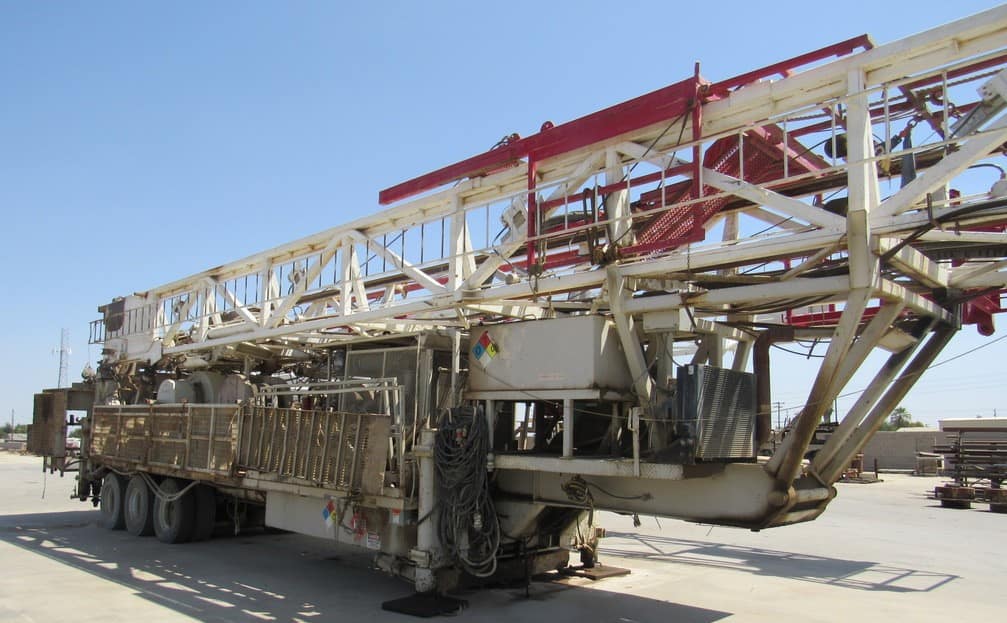

Challenger 320 Drill Rig

Name: Challenger 320 Drill Rig
Price: 485000 USD

USADO

$485,000

Precio del equipo EXW Arizona, EE.UU. (Incoterms 2020). El flete se cotiza según el destino final.

Detalle: D/D Drawworks w/ 7/8" Line, WPT Disc Brake, Hyd Catheads p/b DETROIT Series 60 14.0L D-Deck VI Diesel Eng, ALLISON HT-750 Trans, Transfer Case, 150,000# SHL Rng 3 Sgl Mast, Hyd Raised w/ McKISSICK 3-Sheave Drilling Blocks, H-T SW-35 100-Ton Swivel, 4-1/4" Sq Kelly, Drive Bushing, H-T 18" Rotary Table w/ Split MB, SOWA 100-Ton 3-Sheave Tripping Blocks, 72" Elevator Links, Rotary Hose, Type B Tongs, DP Elevators, RAUSH 12A Pipe Spinner

Detalle: Mtd on CHALLENGER 52'OAL 3-Axle Trailer w/ Short Rotary Drive Box, (2) PULLMASTER PL-8 Hyd Utility Hoists, Air & Hyd Controls, Wt Indicators, SPEEDAIRE Air Compressor p/b 7.5HP Elec Motor, (4) Hyd Jacks, LED Lights, Side-Mtd Walkways, 11R-24.5 Tires

Despachado desde Arizona, EE.UU.

Hablar con un agente de ventas
